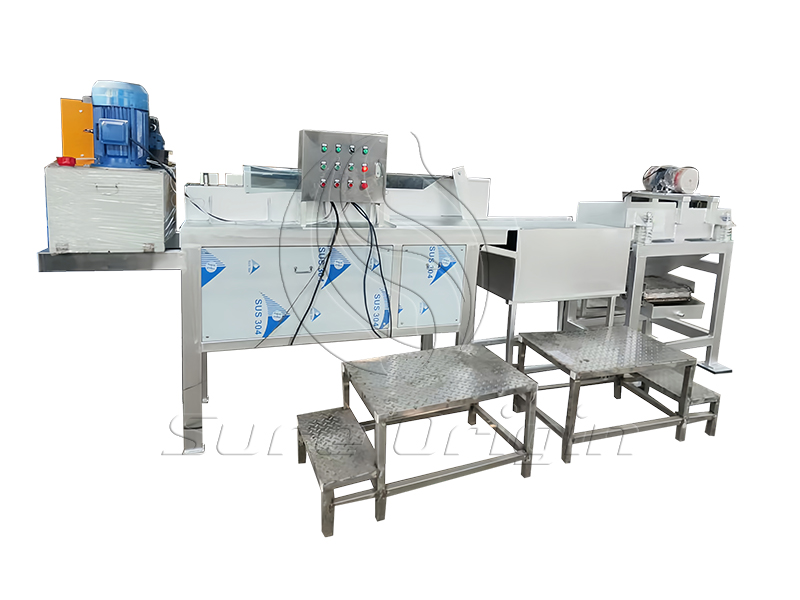

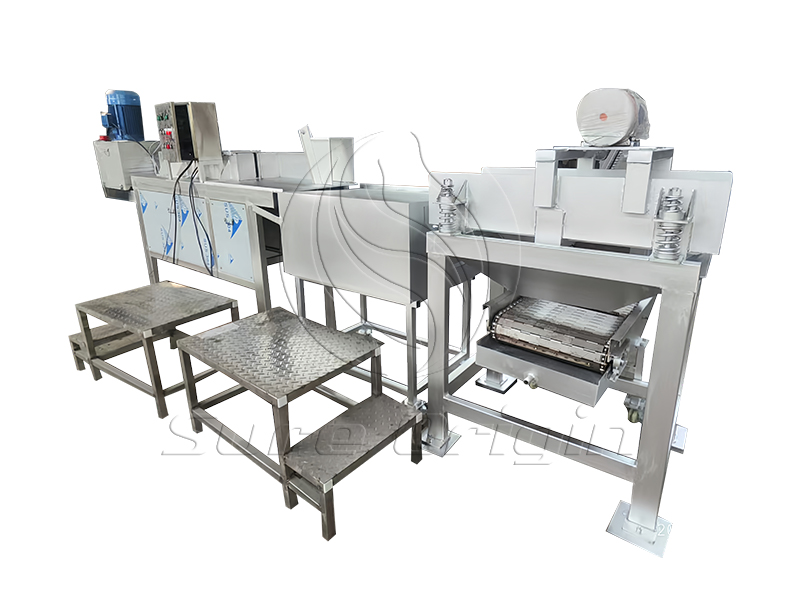

Lead Acid Battery Recycling Machine

Overview

The Sure Origin battery dismantling machine has many advantages and a wide range of applications. If you are an unemployed youth or a friend who is not satisfied with the current work situation, you can join us. The battery dismantling machine has a low threshold and is easy to use.

The battery disassembly machine is also used to process more raw materials. It can process electric vehicle batteries of 10AH, 12AH, 14AH, 17AH, and 20AH at the same time. The structure is simple and the operation is easy. Moreover, the battery dismantling cuts are neat, which can effectively separate the battery shell and lead. Piece.

Battery dismantling machine and battery cap cutting and removing machine are machine products manufactured by Sure Origin. They mainly dismantle used batteries to achieve the purpose of reusing battery lead. The battery dismantling machine automatically performs processing on waste batteries. Dismantling improves the defect of using manual smashing and cutting of waste batteries in the traditional technology, and at the same time protects the operator from injury during the operation.

Final Products

The final products of China Manufacturer Used Car Lead Acid Battery Recycling Machine are lead and plastic shell.

Technical parameters

Cutter
A Cutter	Power	7.5kw
A Cutter	Material	Stainless steel
Hydraulic Station (Carbon steel material)	Maximum pressure	15mpa
	Working pressure	4mpa
	Hydraulic oil type	45#
	Hydraulic oil capacity	Approx. 100L
Equipment dimensions	28508002100mm
Processing speed	10 pieces per minute, approx. 40 tons per day
Maximum battery size	Length 55cm
Equipment voltage	380V, 3phase 50hz (Customizable, requires neutral line)
B Acid collection tank
Power	0.25kw (Two-phase electricity, requires neutral line)
Dimensions	130010001300mm
Material	Stainless steel
Weight	200kg
C Vibration table
Power	0.37kw
Dimensions	12007001600mm
Material	Stainless steel
Weight	400kg

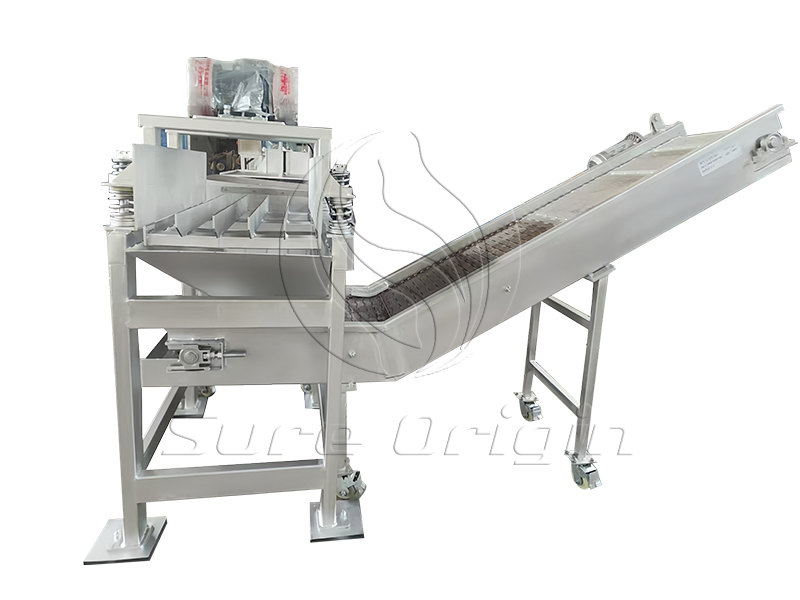

Lead plate and lead paste conveyor belt
Power	1.5kw
Dimensions	30008001800mm
Material	Stainless steel
Weight	300kg

Recycling Process Of Waste Lead-Acid Battery

1.Full automatic working, save labor.

2.Suitable structure and layout, stable performance.

3.Production line installation is convenient.

4.Production line can adopt to different venues.

5.Environmental friendly production line.

Separating section: pure phycisal separation.

Smelting section: Air Pollution Purify System Technology is the guarantee, Quality is the life; Service is the foundation, Brand is the target.

Our group has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. We believe that you will satisfied with the machine feature of Sure Origin and I am sure you will love our price, quality and service.

Test and inspection

Before delivery, we all equipment will imitate the real production environment, use the customer need to deal with material test, to ensure the production line performance and production meet customer requirement. We sincerely invite customers came to the scene for final test.

SERVICE

Reliability throughout the lifetime of your unit!

Technical Advice and Design

Sure Origin engineers will “investigate” with the customer in order to define the proper machinery, proposing the best custom-made system. According to the customer needs about materials treatment, the capacity requirement and the warehouse layout, we will find the best solution. Sure Origin always strives for the best quality and highest possible recovery rates and outputs.

Material Testing

We invite you to send us samples of your materials with a description of your reduction requirements. Our testing laboratory will gladly analyze your needs and send you a sample of the finished product for your approval. We will provide you a confidential technical analysis with the results and data.

Testing Machine Before Delivery

In order to provide customers with the best equipment quality, we provide testing machine service before delivery to ensure the normal operation of each equipment.

Installation & Commissioning & Training

Sure Origin's service for recycling machines is now available worldwide. Sure Origin’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Sure Origin technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.

Spare Parts

Do you need advice about the right parts for your recycling machines? Our service and support experts will help find the right part and ship it to meet your needs. Sure Origin holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Putting your trust in parts from Sure Origin guarantees the continuity of your work processes.

Quick Response

We assure you of a detailed reply within 24 hours upon receipt of your request, and providing you with professional advice.

REQUEST A QUOTATION

Are you looking for a suitable recycling solution for your material? Please share a few more details with us and our experts will contact you right away!
